VigorSwitch P2542x
Switch PoE 10G gerenciado de camada 2+ com 54 portas
Equipamentos

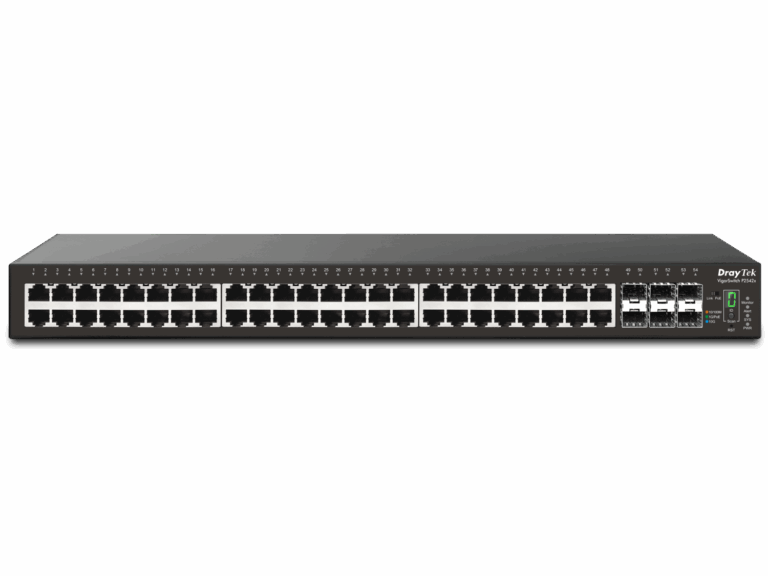

VigorSwitch P2542x
O switch que melhora a velocidade da rede
O DrayTek VigorSwitch P2542x possui 48 portas LAN Gigabit Ethernet e 6 links de fibra SFP+ de 10 Gbps. A capacidade PoE+ integrada fornece energia para todas as 48 portas LAN, com recursos de agendamento PoE e monitoramento de prioridade para garantir a operação confiável dos dispositivos conectados. A entrada dupla de energia CC e CA oferece flexibilidade aprimorada para implementações diversas.
Com suporte a recursos avançados de Camada 3, incluindo servidor DHCP e saída de VLAN, o VigorSwitch P2542x melhora a eficiência da rede e garante que sua LAN continue operando mesmo quando o gateway estiver offline, tornando-o um switch central ideal para PMEs/PMEs.
48x PoE/PoE+
Ethernet 10/100/1000 Mbps, RJ-45
6x 10G SFP+
Gigabit Ethernet, RJ-45/SFP Combo
400 watts
Orçamento de energia PoE
216 Gbps
Capacidade de comutação

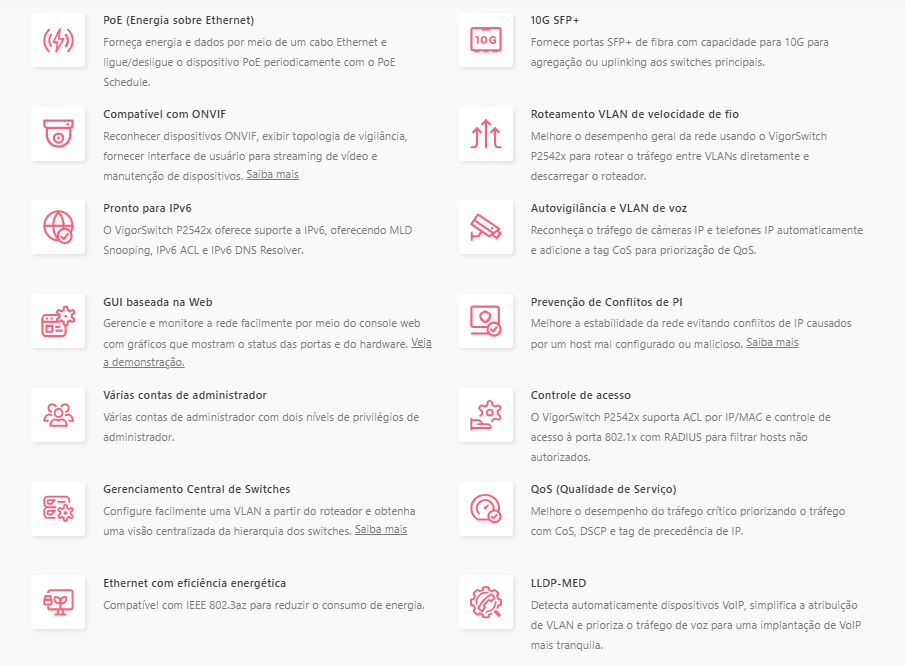

Principais características
Desempenho | |
| Tamanho do buffer (Mbit) | 16 |
| Capacidade de comutação (Gbps) | 216 |
| Taxa de encaminhamento (64 bytes) (Mpps) | 160,7 |
| Tabela de endereços MAC | 32 mil |
| Quadro Jumbo Máx. (KB) | 12 |
| L3 Routing Table | ✓ |

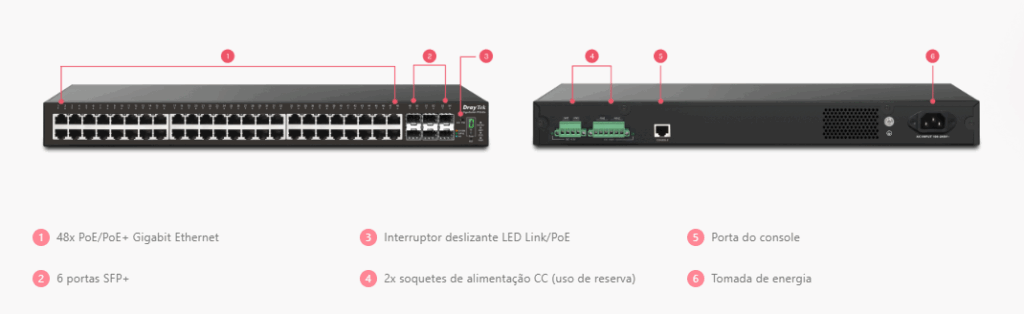

Portos | |
| 1 GbE | 48 |
| SFP+ (10G) | 6 |
| Console (RJ-45) | 1 |
| Slide Switch | ✓ |
PoE | |
| PoE+(802.3af/at) Ports | 48 |
| PoE Power Budget (watts) | 400 |
| Scheduled On/Off | ✓ |
Standard Compliance | |
| Ethernet Standards | 802.3af PoE 802.3at PoE+ 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.3ae 10GBase-X 802.3x Flow Control 802.3 Auto-Negotiation 802.1q Tag-based VLAN 802.1p Class of Service 802.1d STP 802.1w RSTP 802.1s MSTP 802.3ad LACP 802.1ad QinQ 802.1x Port Access Control 802.1AB LLDP 802.3az EEE |
Spanning Tree | |
| STP | ✓ |
| RSTP | ✓ |
| MSTP | ✓ |
Link Aggregation | |
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | LACP, Static |
| Traffic Load Balancing | ✓ |
Stacking | |
| Max. Stackable Devices | 4* |
| Stacking Topology | Line*, Ring* |
VLAN | |
| Max. Number of VLAN | 512 |
| VLAN Type | 802.1q Tag-based VLAN MAC-based VLAN Protocol-based VLAN Management VLAN Voice VLAN Surveillance VLAN |
| GVRP | ✓ |
| QinQ (Basic) | ✓ |
Layer3 Features | |
| Static Route | ✓ |
| VLAN Route | ✓ |
| DHCP Server | ✓ |
Multicast | |
| IGMP Snooping | v2, v3(BISS) |
| IGMP Querier | ✓ |
| MLD Snooping | v1, v2 |
| Max. Number of Multicast Group | 256 |
| Multicast Group Filtering / Throttling | ✓ |
| MVR (Multicast VLAN Registration) | ✓ |
ONVIF Surveillance | |
| Discovery | ✓ |
| Surveillance Topology | ✓ |
| Real-Time Video Streaming | ✓ |
| ONVIF Device Maintenance | Device Info Network Settings Time Settings Reboot Reset to Factory Default |
QoS | |
| Number of QoS Queues | 8 |
| Queue Schedule | SPQ, WRR |
| CoS (Class of Service) | CoS DSCP CoS-DSCP IP Precedence |
| Rate Limiting | ✓ |
Security | |
| Authentication Server | RADIUS, TACACS+ |
| 802.1X/MAC Authentication | ✓ |
| IP Source Guard | ✓ |
| Traffic Control | DoS Defense, Storm Control |
| Dynamic ARP Inspection (DAI) | ✓ |
| DHCP Snooping | ✓ |
| IP Conflict Prevention | ✓ |
| Loop Protection | ✓ |
Management | |
| Local Service | HTTP HTTPS Telnet SSH v2 |
| Config Backup/Restore | ✓ |
| Dual Image | ✓ |
| 2-Level Administration Privilege | ✓ |
| Access Control | Access List |
| OpenVPN Client | ✓ |
| sFlow | ✓ |
| SNMP | v1, v2c, v3 |
| RMON Group | 1, 2, 3, 9 |
| SNTP (Simple Network Time Protocol) | ✓ |
| LLDP | ✓ |
| LLDP-MED | ✓ |
| Mail Alert | Port Status Port Speed System Restart IP Conflict Hardware Monitor Device Check ONVIF IP Cam Snapshot |
| VigorRouter Management (SWM) | ✓ |
| VigorACS Management (Since f/w) | V3.9.8 |
Physical | |
| Rack Mountable | 1U |
| Power Input | AC 100-240V @ 5.8A |
| Backup Power Input | DC 12V @ 4.8A & DC 54V @ 7.5A |
| Max. Power Consumption (watts) | 498.4 |
| Dimension (mm) | 440 x 346 x 44 |
| Weight (kg) | 5.49 |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Storage Humidity (non-condensing) | 5 to 90% |
