VigorAP 905
2×3 AX3000 Dual Band WiFi 6 Access Point
Equipamentos

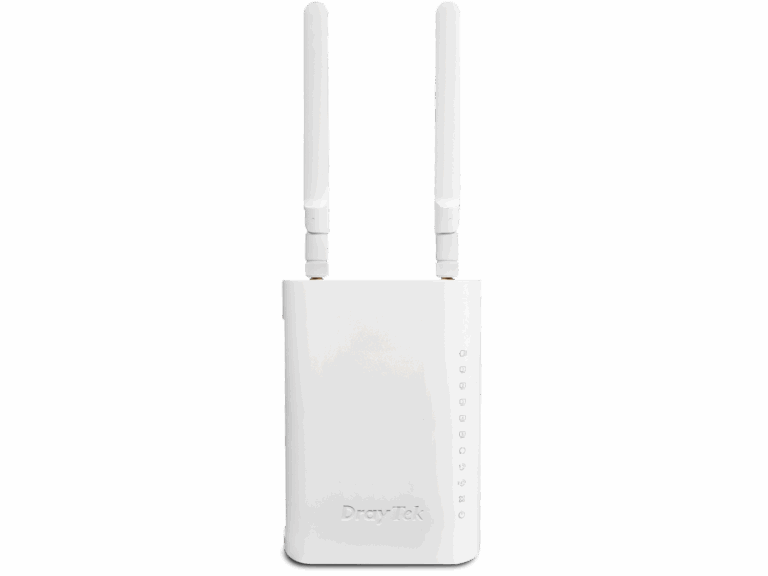

VigorAP 905
Pontos de Acesso WiFi 6 Poderosos para Melhor Eficiência de Rede
O VigorAP 905 é um Access Point WiFi 6 dual-band, oferecendo taxa de link de 600 Mbps em 2.4GHz e 2400 Mbps em 5GHz. Com suporte para até 256 clientes simultâneos e uma poderosa rede mesh, ele oferece conectividade sem fio excelente e confiável, tornando-se a solução perfeita para ambientes de alta velocidade e alta densidade.
Dual-Band
5 GHz e 2,4 GHz simultâneos
AX3000
600 Mbps em 2,4 GHz e 2,4 Gbps em 5 GHz
1x 2.5G LAN
Internet de alta velocidade
256 Usuários
2,4 GHz e 5 GHz compartilhados simultaneamente

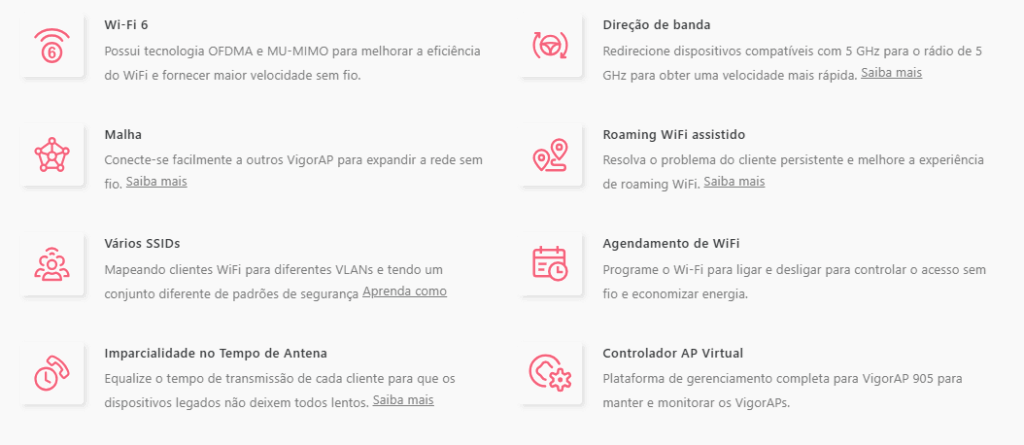

Principais características
Ports | |||
| 1 GbE | 4 | ||
| 2.5 GbE | 1 | ||
| USB 2.0 | 1 | ||
LAN | |||
| DHCP | DHCP Client DHCP Server DHCP Relay Agent | ||
| Static IP | ✓ | ||
| Bind IP to MAC | ✓ | ||
| 802.1q tag-based VLAN | ✓ | ||
WLAN | |||
| Band Type | Dual-Band | ||
| WiFi 6 | ✓ | ||
| OFDMA | ✓ | ||
| Max. Clients | 256 | ||
| 2.4GHz WLAN | 802.11 b/g/n/ax | ||
| 5GHz WLAN | 802.11 a/n/ac Wave 2/ax | ||
| Antennas | 2x External Dipole DB + 1x Internal PIFA 5G | ||
| 2.4GHz Antenna Gain (dBi) | 1.87 | ||
| 5GHz Antenna Gain (dBi) | 5.72 | ||
| 2.4GHz Max. Link Rate (Mbps) | 600 | ||
| 5GHz Max. Link Rate (Mbps) | 2400 | ||
| Operating Mode | AP Mesh Root Mesh Node Range Extender | ||
| Max. Number of SSIDs (per band) | 16 (8) | ||
| MAC Address Filter (Max. entry number per SSID) | 128 | ||
| Security Mode | OWE WEP WPA WPA2/WPA WPA2 WPA3/WPA2 WPA3 | ||
| Authentication | Enterprise, Personal | ||
| WMM | ✓ | ||
| AirTime Fairness | ✓ | ||
| Band Steering | ✓ | ||
| Roaming | AP-Assisted Roaming Pre-Authentication 802.11r 802.11v 802.11k | ||
| WPS | PIN Code, WPS Button | ||
Objects | |||
| MAC Object | ✓ | ||
| MAC Group | ✓ | ||
| Schedule | ✓ | ||
APP Notifications | |||
| System | WUI/SSH/Telnet Login | ||
| Wireless LAN | Mesh Node online/offline | ||
Authentication | |||
| RADIUS Authentication | ✓ | ||
Certificates | |||
| Local Certificates | ✓ | ||
| Trusted CA | ✓ | ||
| Local Services | ✓ | ||
| Backup & Restore | ✓ | ||
Monitoring | |||
| DHCP Table | ✓ | ||
| ARP Table | ✓ | ||
| LLDP Neighbors information | ✓ | ||
| Web Syslog | ✓ | ||
| Internet Detection | ✓ | ||
| Clients List | ✓ | ||
Utility | |||
| Ping Tool | ✓ | ||
| Trace Tool | ✓ | ||
| Web CLI | ✓ | ||
System Maintenance | |||
| Syslog | ✓ | ||
| SNMP | v1, v2c, v3 | ||
| Firmware Upgrade | WUI, TFTP, TR-069 | ||
| Backup/Restore | ✓ | ||
| Role-based Privilege | ✓ | ||
| System Reboot | ✓ | ||
Management | |||
| Service Control | HTTP HTTPS Telnet | ||
| TR-069 | ACS and CPE Settings | ||
| Mesh | Node, Root | ||
| Virtual AP Controller (Device up to) | 20 | ||
| VigorConnect Management (Since f/w) | V5.0.4 | ||
| VigorACS Management (Since f/w) | V5.0.4 | ||
PoE | |||
| PoE Input Power Supply | 48V @ 0.45A | ||
| PoE Input | PoE+ (802.3af/at) | ||
Physical | |||
| Environment | Indoor | ||
| Mounting | Wall / Desktop | ||
| Powered via | DC / PoE | ||
| Power Input | 12V DC @ 1.5A | ||
| Max. Power Consumption (watts) | 17 | ||
| Dimension (mm) | 115 x 158 x 40 | ||
| Weight (g) | 330 | ||
| Operating Temperature | 0 to 40°C | ||
| Storage Temperature | -20 to 60°C | ||
| Operating Humidity (non-condensing) | 10 to 90% | ||
