Vigor C510 Series

Roteador de segurança VPN celular 4G

Equipamentos

Vigor C510 Series

5G e WiFi 6 para conectividade de última geração

A Série Vigor C510 é um roteador de segurança WAN celular de alto desempenho com conectividade 5G integrada, ideal como solução primária de internet com operação “Always On” para garantir conexão contínua em operações críticas.

Conta com dois slots SIM (um ativo por vez) para maior redundância e recursos avançados como VPN, QoS, roteamento por políticas, filtragem web, IAM, hotspot e mais — ideal para empresas que exigem rede robusta e segura.

Oferece Backup WAN com failover via Ethernet ou Wi-Fi (2,4 GHz/5 GHz) e suporte a Wi-Fi 6 (802.11ax) para desempenho sem fio rápido e eficiente..

5G

Suporte ao módulo SA e NSA

4 VPN

Vazão IPsec de até 370 Mbps

AX 3000*

Taxa de link de até 3 Gbps

50K Sessões

          Recomendado para uma rede com 30              dispositivos

*apenas para modelo ax

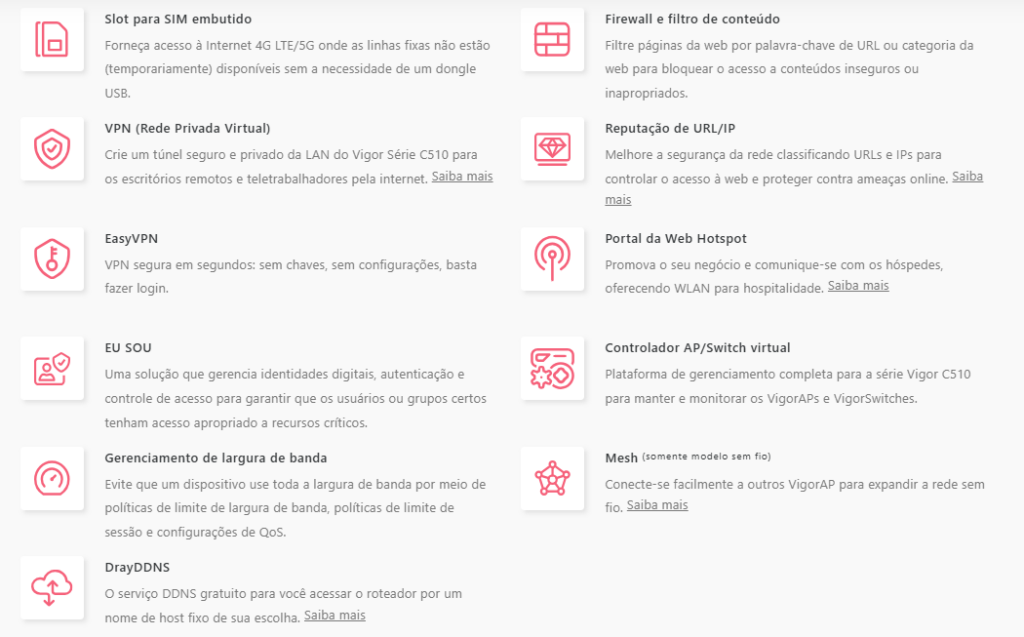

Principais Features

Performance

NAT Session50K
Max. NAT (Mbps)940
WAN
Ethernet (1 GbE)2
Ethernet – LAN/WAN Switchable✓
Cellular (Built-in)5G
Wireless WAN (2.4GHz + 5GHz)✓
3G
WCDMA (3G) Band1,8
4G LTE
SIM Slot                                                                                                           2
LTE Category (Up to)CAT.19
Max. Rx Link Rate (Mbps)1600
Max. Tx Link Rate (Mbps)200
FDD Band1(2100MHz), 3(1800MHz), 7(2600MHz), 8(900MHz), 20(800MHz), 28(700MHz)
TDD Band38(2600MHz), 40(2300MHz)
5G
5G Band                                                     n1, n3, n7, n8, n20, n28, n38, n40, n77, n78
4G/5G Antenna (External Dipole)2
4G/5G Antenna (Internal PIFA)2
4G/5G Antenna Peak Gain (dBi)4
5G NSA Max. Rx Link Rate (Mbps)3400
5G NSA Max. Tx Link Rate (Mbps)550
5G SA Max. Rx Link Rate (Mbps)2400
5G SA Max. Tx Link Rate (Mbps)900
Internet Connection
IPv4PPPoE
DHCP
Static IP
IPv6PPPoE
DHCPv6
Static IPv6
TSPC
6rd
6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging✓
Failover✓
Connection DetectionARP, Ping
WAN Data Budget✓
Dynamic DNS✓
DrayDDNS✓
LAN
Fixed LAN (RJ-45, GbE)3
LAN Subnet4
VLAN802.1q Tag-based VLAN
Port-based VLAN
Max. Number of VLAN8
DHCP ServerMultiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
Wired 802.1x Authentication✓
Port Mirroring*
Local DNS Server✓
Conditional DNS Forwarding✓
Hotspot Web Portal (Profile No.)2
Hotspot AuthenticationClick-Through
External Portal Server
WLAN
2.4GHz WLAN802.11ax 2×2 MIMO
5GHz WLAN802.11ax 3×3 MU-MIMO
WiFi Antenna (External Dipole)2
WiFi Antenna (Internal PIFA)1
2.4GHz Antenna Gain (dBi)2.1
5GHz Antenna Gain (dBi)2.8
2.4GHz Max. Link Rate (Mbps)574
5GHz Max. Link Rate (Mbps)2402
Max. Number of SSIDs (per band)8 (4)
Security ModeOWE
WEP
WPA
WPA2/WPA
WPA3
WPA3/WPA2
AuthenticationPre-Shared Key
WiFi 6✓
OFDMA✓
RoamingAssisted Roaming
WPSWPS Button, PIN Code
WDSRepeater
Access ControlAccess List
Client Isolation
Hide SSID
WLAN Scheduling
AirTime Fairness✓
Band Steering✓
WMM✓
Mesh (5GHz Only)Root
Networking
Routing                                IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
RIP v1/v2
OSPF(V2/V3)
BGP
Policy-based RoutingProtocol
IP Address
Port
DNS Security (DNSSEC)✓
IGMPIGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave
Local RADIUS server✓
Bandwidth Management
Traffic Shaping Policy✓
IP-based Bandwidth Limit✓
IP-based Session Limit✓
QoS (Quality of Service)IP Address
Port
Application
APP QoS✓
Default Policy✓
VoIP Prioritization✓
Management
Local ServiceHTTP
HTTPS
Telnet
SSH v2
FTP
TR-069
Config Backup/Restore✓
Firmware UpgradeWUI, TFTP, TR-069
Role-based Privilege✓
Access ControlAccess List, Brute Force Protection
Notification AlertSMS, E-mail
SNMPv1, v2c, v3
Syslog✓
Virtual AP Controller (Device up to)20
Mesh (Number of manageable APs)7
Virtual Switch Controller5
VigorACS Management (Since f/w)V5.3.1
Security
IP Reputation Filter✓
Firewall FilterIP
Content
Traffic
Defense SetupARP Spoofing
IP Spoofing
MAC Filtering Profile✓
IPv6 Address Security✓
IAM
Users & Groups✓
Access Policies✓
Group Policies✓
Conditional Access Policy✓
Resources✓
Account Status✓
Backup and Restore✓
VPN
Site-to-Site VPN✓
Teleworker VPN✓
EasyVPN✓
ProtocolsIPsec
IKEv1/IKEv2
IKEv2-EAP
IPsec-XAuth
OpenVPN
WireGuard
Max. VPN Tunnels4
IPsec VPN Throughput (AES 256 bits) (single-directional) (Mbps)370
WireGuard VPN Throughput (single-directional) (Mbps)50
User AuthenticationLocal
RADIUS
TACACS+
mOTP
TOTP
IKE AuthenticationPre-Shared Key, X.509
IPsec AuthenticationSHA-1, SHA-256
EncryptionDES
3DES
AES
Single-Armed VPN✓
NAT-Traversal (NAT-T)✓
VPN Connection Status✓
Backup & Restore✓
Monitoring
Clients List✓
Log Center✓
Wireless Information✓
WAN✓
ARP Table✓
Route Table✓
DHCP Table✓
IPv6 TSPC Status✓
IPv6 Neighbor Table✓
LLDP Neighbors information✓
DNS Cache Table✓
PPPoE Pass-Through✓
Session Table✓
Physical
Power InputDC 12V @ 0.7A                   DC 12V @ 1.4A
Max. Power Consumption (watts)8.1                                         16
Dimension (mm)207 x 131 x 42
Operating Temperature0 to 45°C
Storage Temperature-25 to 70°C
Operating Humidity (non-condensing)10 to 90%
